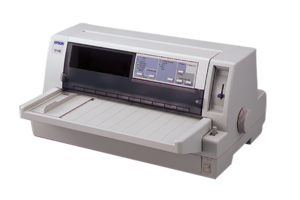

Epson LQ-680 Pro

Monday to Friday 9:00 to 18:00 HKT

24 pin A4 Dot Matrix Printer

Printing 413 cps in High-Speed Draft mode, the Epson LQ-680Pro creates letter-quality results on forms up to six parts thick. Thirty-eight percent faster than its predecessor, the popular Epson LQ-670, this economical printer races through your mission critical tasks like printing tickets, receipts, checks, labels, and more. It's straight paper path and flatbed feed design offer more efficient printing — without causing paper jams that can waste valuable time and damage high-cost forms. But, what's especially reassuring about the Epson LQ-680Pro is its advanced APG (Automatic Platen Gap) technology. Sensing the thickness of multiple-part forms, it automatically adjusts the position of the print head to prevent damage to the pins from unnecessary force.

      • Printing Method: 24-pin, impact dot matrix, narrow carriage
      • Print Speed (cps @10 cpi): 413 cps
      • Print Head Life: 400 million strokes/wire
      • Sound Level: 55 dB(A)
  • Model: C11C376151

Print Other:


Printing Technology: 24-pin
impact dot matrixPrint Resolution: Bi-directional with logic seekingPrint Direction: Bi-directional with logic seeking

Paper Handling Impact:


Single Sheets:
  • Front entry
    manual insertion
  • Width: 3.5" to 12"
  • Length: 2.8" to 16.5"
  • Thickness: .0025" to .0074"
    Cut Sheets:
  • Front entry
    manual insertion
  • Width: 3.5" to 12"
  • Length: 2.8" to 16.5" (line glue on one side of the form
    11.7" maximum)
  • Thickness: .0047" to .018"
  • Copies: 1 original + 5 copies
    Envelopes:
  • No. 6
    No. 10
  • Thickness .0063" to .0205"
    Continuous:
  • Width 4" to 12"
  • Length (one page) 3" to 22"
  • Thickness .0025" to .018"
  • Copies 1 original + 5 copies
    Labels:
  • Base sheet width 4" to 12"
  • Base sheet length 3" to 22"
  • Total thickness .0075"
    Length:
  • Length (one page) 3" to 22"
  • Thickness .0025" to .018"
  • Copies 1 original + 5 copies
    Continuous forms with labelsRoll paper:
  • Width 8.5"
  • Thickness .0028" to .0035"
    Paper Feed Mechanism: Feeding method
  • Friction feed (front manual
    rear cut sheet feeder)
  • Push tractor feed (rear)
    Feeder
  • Rear push tractor
  • Cut sheet feeder bin1 / bin2 (option)
  • Roll paper holder (option)
    Paper Feed Speed:
  • 64 millisecond per 1/6"
  • 5" per second continuous feed
    Paper Path:
  • Manual insertion (front in
    front out)
  • Cut sheet feeder (rear in
    front out)
  • Tractor (rear in
    front out)
  • Power:


    Rated Frequency: 50 – 60 HzRated Voltage: AC 220 - 240VInput voltage range: AC 220 – 240 VInput frequency range: 49.5 – 60.5 Hz

    General:


    Weight: 20.7 lbsSound Level: 55 dB(A)Dimensions: 19.6" x 15.2" x 9" (W x D x H)

    General Impact:


    Software Drivers: Windows 3.1x
    Windows 95
    Windows 98
    Windows 2000
    Windows Me and Windows NT 3.51/4.0Printer Language: ESC / P2
    IBM 2390 Plus emulationInterfaces: Bi-directional 8-bit parallel interface (IEEE-1284 Nibble Mode supported)
    Type-B interface slot optionControl Panel: Functions: Font
    pause
    tear off
    LF / FF
    load / eject
    micro adjust
    self test
    data dump and the default settingsInput Buffer: 64 KB

    Characters & Lines:


    Character Sets:
  • 13 standard version
  • 39 NLSP version
  • 14 international character sets
    Resident Bitmapped Fonts:
  • Epson Draft 10 cpi
    12 cpi
    15 cpi
  • Epson Roman 10 cpi
    12 cpi
    15 cpi
    Proportional
  • Epson Sans Serif 10 cpi
    12 cpi
    15 cpi
    Proportional
  • Epson Courier 10 cpi
    12 cpi
    15 cpi
  • Epson Prestige 10 cpi
    12 cpi
  • Epson Script 10 cpi
  • Epson OCR-B 10 cpi
  • Epson Orator 10 cpi
  • Epson Orator-S 10 cpi
  • Epson Script C Proportional
    Scalable Fonts:
  • Epson Roman 8 to 32 points (every 2 pt)
  • Epson Sans Serif 8 to 32 points (every 2 pt)
  • Epson Roman T 8 to 32 points (every 2 pt)
  • Epson Sans Serif H 8 to 32 points (every 2 pt)
    Bar Code Fonts: EAN-13
    EAN-8
    Interleaved 2 of 5
    UPC-A
    UPC-E
    Code 39
    Code 128
    PostnetLine Spacing: 1/6" or programmable in increments of 1/360"
  • Reliability:


    Ribbon life: Black fabric cartridge: 2 million characters (LQ mode
    10 cpi
    48 dots / character)Print head life: 400 million strokes / wireMTBF: 10000 POH (25% duty cycle)
