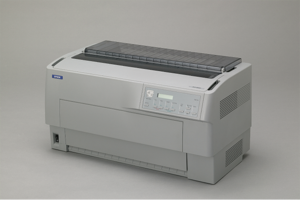

Epson DFX-9000

Monday to Friday 9:00 to 18:00 HKT

DFX-9000 Impact Printer Combining speed and reliability for maximum productivity.

With speeds up to 1550 cps and an MTBF rating of 20,000 power-on hours (POH), the Epson DFX-9000 offers the power and durability to tackle the most demanding print tasks. Day after day, you can count on it to efficiently process everything from reports and 10-part forms to shipping documents or mailing labels.

A robust, dependable workhorse, this 9-pin, wide-format printer boasts a 400-million-character print head life and 15-million-character ribbon cartridge, which minimizes production costs and reduces the need for frequent user intervention. Its advanced paper handling capabilities make it the perfect solution for a wide variety of applications, including critical spreadsheets, checks, invoices, bar codes and more.

  • Model: C11C605021
•Prints multipart forms, labels, and more at speeds up to 1550 cps
•Durable 9-pin performer offers an MTBF rating of 20,000 POH at 25% duty cycle
•Boasts a 400-million-character print head life
•15-million-character ribbon cartridge ensures low cost printing and reduces the need for frequent user intervention
•Convenient LCD display allows for easy printer configuration and menu navigation
•Prints 136-column, wide-format reports, plus forms up to 10 parts thick
•Front and rear paper paths
•Platen gap adjusts automatically, according to the paper thickness
•Auto jam sensor eliminates wasting forms
•Enhanced connectivity supports standard Parallel, Serial, and USB interfaces
•Accommodates optional internal Type B interface boards for easy networking

Print Other:


Printing Technology: 9-pin
serial impact dot matrixISO Print Speed:
  • High Speed Draft: High Speed Draft 1550 cps (10 cpi)
  • Draft: 1320 cps (10 cpi)
  • Near Letter Quality: 330 cps (10 cpi)
Print Direction: Bidirectional logic seeking for text and graphics printing. Unidirectional text or graphics printing can be selected using software commands.

Paper Handling Impact:


Forms:
  • Continuous form paper
  • Front Tractor: Multi-part 1 + 9 carbonless copies
  • Rear Tractor: Multi-part 1 + 6 carbonless copies
  • Width: Continuous forms 3 – 16.5" wideLabels: Minimum: 2.5" x 0.94"Length: Continuous forms 3 – 17"Paper Feed Speed: 26.5 millisecond per line at 1/6" line spacing; 15" per second continuous feedPaper Path:
    • Push tractor: Front or rear in
      top out
    • Pull tractor: Front or rear in
      top out (optional)

Power:


Power Consumption: Rated voltage 220 – 240V AC
input voltage range 220 – 240V
rated frequency range 50 – 60 Hz
input frequency range 49.5 – 60.5 HzRated Frequency: 50 – 60 HzRated Voltage: AC 220 - 240VPower Requirements: Rated voltage 220 – 240V AC
input voltage range 220 – 240V
rated frequency range 50 – 60 Hz
input frequency range 49.5 – 60.5 HzInput voltage range: 220 – 240VInput frequency range: 49.5 – 60.5 Hz

General:


Weight: 75 lbSound Level: 58 dBA (ISO 7779 pattern)Dimensions: 27.6" x 14.9" x 14.3" (W x D x H)

General Impact:


Software Drivers: Windows 95
98SE
2000
Me
XP and NT 4.0Printer Language:
  • Epson ESC / P
  • IBM PPDS
Interfaces:
  • Bidirectional Parallel (IEEE 1284 Nibble Mode supported)
  • RS-232C serial
  • USB 1.1
  • Type-B slot for optional interface cards
Control Panel: 9 buttons
6 LEDs
and 1 LCDInput Buffer: 128KB

Characters & Lines:


Character Sets: 11 Character tables
13 international character setsResident Bitmapped Fonts:
  • Epson Super Draft 10 cpi
  • Epson Draft 10
    12 cpi
  • Epson NLQ Roman 10
    12
    proportional
  • Epson NLQ Roman / San Serif 10
    12
    proportional
Bar Code Fonts: EAN-13
EAN-8
Interleaved 2 of 5
UPC-A
UPC-E
Code 39
Code 128
POSTNET
Codabar (NW-7)
Industrial 2 of 5
Matrix 2 of 5Characters per Line: 136 characters at 10 cpiLine Spacing: 6 lines per inch defaultFormatting: 1/6-inch
1/8-inch or programmable in 1/432-inch increments

Reliability:


Ribbon life: 15 million characters at 14 dots/characterPrint head life: 400 million characters at 14 dots/characterMTBF: 20000 POH (25% duty cycle)
