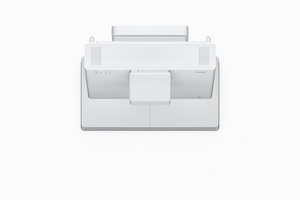

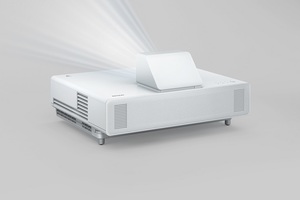

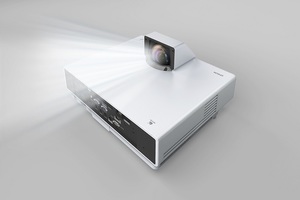

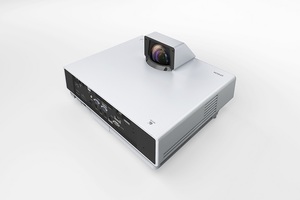

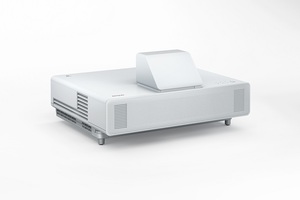

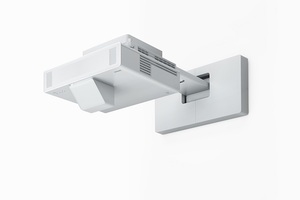

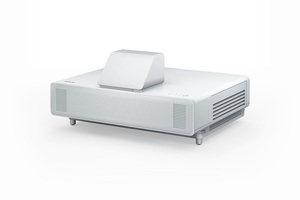

EB-800F Laser Ultra-Short Throw Projector

Bright Ultra-Short Throw Laser Projector

Big, bright and user-friendly, EB-800F, technology and ideas into one seamless digital experience, facilitating better communication. Featuring 1080P¹ resolution, a clearly readable display up to 130", plus 5,000 lumens of color brightness and 5,000 lumens of white brightness², this ultra-short throw projector enables impactful presentations. EB-800F's laser light engine also provides 20,000 hours of virtually maintenace-free operation⁴.

Model: V11H923560

Where to Buy

Overview

Turn any wall or existing dry-erase board into a maximum 130" display for more efficient meetings and collaboration, in the room or across the globe

Color Brightness: 5,000 lumens²
White Brightness: 5,000 lumens²

1080P¹display up to 130" — for an optimal viewing experience and clear readability

Solid-state laser light source — designed with inorganic components for up to 20,000 hours laser light source life*

Wireless device compatibility — wirelessly display documents, files and photos from your iPad®, iPhone®, and Android™ mobile devices with the Epson iProjection™ App³

Edge blending projection — combines the images of two projectors to achieve an even larger display area

Eco Features

RoHS compliant

Specifications

Specifications Projector:

Throw Ratio Range: 0.27-0.37Keystone Correction: -3 degrees to +3 degreesSize - projected distance: 65" – 130" (16:9) / 61" - 120" (16:6)Color Reproduction: Up to 1.07 billion colorsContrast Ratio: Over 2,500,000:1Projection System: Epson 3-chip
3LCD technologyProjection Method: Front / wall mountDriving Method: Epson Poly-silicon TFT Active MatrixColor Brightness - Color Light Output: 5000 lumens1White Brightness - White Light Output: 5000 lumens1Aspect Ratio: 16:9Laser Type: 20,000 hours (Normal Mode)

Power:

Power Supply Voltage: 100 – 240 V ±10%
50/60 HzPower Consumption: Normal Mode: 366 W

General:

Weight: 9.2 kg

Projection Lens:

Type: Manual focusF-number: 1.5Focal Length: 3.9 mmZoom Ratio: Digital zoom 1.0 – 1.35x

See Full Specs Hide Full Specs

Print All Specs

Notes:

* 20,000 hours is the estimated life of laser light source when used in Normal Mode. Actual hours may vary depending on mode and usage environment.

1. EB-800F uses Pixel Shift Technology to achieve Full HD Resolution on screen

2. Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118

3. To use Epson iProjection, the projector must be configured on a network. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Not all Epson projectors are able to be networked. Availability varies depending on model. Not all files and formats are supported. See ww.epson.com for details.

4. No maintenance for the light source required up to 20,000 hours. Replacement of parts other than the light source may be required in a shorter period
