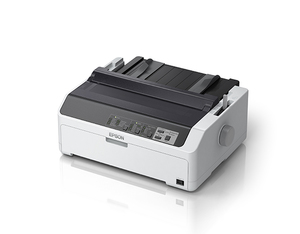

Epson LQ-590llN

Monday to Friday 9:00 to 18:00 HKT

Powering business productivity with superior performance and reliability

With powerful 24-pin technology, the Epson LQ-590IIN delivers precision text and graphics, plus rugged reliability for critical print requirements. Offering print speeds of up to 550 cps and easy integration with existing printing formats, this robust performer is sure to increase productivity. With versatile 1+6-part forms printing, multiple paper loading options, and a durable, long-lasting ribbon, it races through reports, purchase orders, invoices and more.
Ideal for point-of-sale, manufacturing, and production environments, this workhorse boasts an amazing 25,000 POH MTBF rating and a 400 million character print head life. Its easy-to-use control panel makes changing print settings a snap, while convenient configuration software facilitates simple setup via a PC. It even provides Parallel and USB connections, plus a slot for interface cards, including high-speed Ethernet, for greater compatibility with practically any system. And, with both Epson and IBM® printer languages, it's a great replacement for the Okidata® ML-390/490 or the Epson LQ-590/570/870/.
Ideal for businesses that require high quality, multi-part forms printing, the reliable Epson LQ-590IIN printer offer extremely low operational costs compared to other printing technologies, as well as superior performance in comparison to other printers in its class. Designed for use in demanding print environments, this heavy-duty dot matrix printer handles critical business applications with precision and ease.

  • Model: C11CF39508
  • Delivers high quality text and graphics for critical applications
  • Speeds through multipart forms, reports, labels and more at up to 550 cps (Ultra Speed Draft)/487cps(High Speed Draft)
  • Offers an MTBF rating of 25,000 POH and a 400 million character print head life
  • Facilitates greater productivity with less downtime
  •  (LQ-590IIN) character ribbon cartridge reduces the need for frequent ribbon changes
  • Ensures the lowest cost per page
  • Includes USB and Parallel connections, plus ethernet adn serial (built-in)
  • Epson and IBM printer languages ensure compatibility for new and legacy printing applications
  • Improved menu navigation allows quick and easy changes to printer settings
  • Remote Configuration Manager facilitates easy setup via a PC
  • Interfaces: USB, Parallel, Serial, Ethernet

Print Other:


Printing Technology: impact dot matrix
24-pinISO Print Speed:
  • Ultra High Speed Draft: 550 cps (10 cpi); 487 cps (10 cpi/High Speed Draft)
  • Draft: 366 cps (10 cpi)
  • Letter Quality: 121 cps (10 cpi)
Print Direction: Bidirectional logic seeking for text and graphics printing

Paper Handling Impact:


Forms: original plus 6 carbonless copies
Continuous multipart
maximum thickness .014"Envelopes:
  • No. 6 envelopes: 6.5" x 3.6"
  • No. 10 envelopes: 9.5" x 4.1"
Width:
  • Single sheets: 3.9" to 10.1"
  • Continuous: 4" to 10"
  • Cut-sheet feeder: 7.2" to 8.5"
Labels: Minimum: 2.5" x 0.94"Length:
  • Single sheets: 3.9" to 14.3"
  • Continuous: 4" to 22"
  • Cut-sheet feeder: 10.1" to 14"
Roll paper: 8.5" widthPaper Feed Speed:
  • 45 millisecond per 1/6"
  • 5" per second continuous feed
Paper Path:
  • Manual insertion: Front or top in
    top out
  • Cut sheet feeder: Top in
    top out
  • Tractor: Front
    rear or bottom in
    top out

Power:


Rated Frequency: 50 – 60 HzRated Voltage: AC 220 - 240VInput frequency range: 50 – 60 Hz

General:


Weight: 7.2kgSound Level: 55 dB(A)Dimensions: 437mm x 375mm x 176.5mm (W x D x H)

General Impact:


Software Drivers: Windows XP
Vista
7
8
10Printer Language:
  • Epson ESC / P2
  • IBM PPDS
Interfaces:
  • Bidirectional Parallel (IEEE 1284 Nibble Mode supported)
  • USB 2.0
  • 100base-TX wired Lan
Control Panel: Functions: Font
pitch
pause
tear off
bin selection
line feed
form feed
load
eject
micro adjust
top-of-form adjustment
panel lockout
reset
menu
default setting selectionInput Buffer: 128 KB

Characters & Lines:


Character Sets: 96 ASCII characters; 14 international character sets and 1 legal character set; 128 user-defined characters; Extended IBM style graphic characters; 5 code pagesResident Bitmapped Fonts:
  • Epson Draft 10
    12
    15 cpi
  • Epson Roman 10
    12
    15 cpi proportional
  • Epson San Serif 10
    12
    15 cpi proportional
  • Epson Courier 10
    12
    15 cpi
  • Epson Prestige 10
    12
    15 cpi
  • Epson Script 10 cpi
  • Epson OCRB 10 cpi
  • Epson Script C proportional
  • Epson Orator 10 cpi
  • Epson Orator S 10 cpi
Bar Code Fonts: EAN-13
EAN-8
Interleaved 2 of 5
UPC-A
UPC-E
Code 39
Code 128
POSTNET
Codabar (NW-7)
Industrial 2 of 5
Matrix 2 of 5Characters per Line: 80 characters at 10 cpiFormatting:
  • 32 horizontal tabs
  • line spacing in 1/6" or programmable (minimum 1/360" increments)
  • skip over perforations in lines
  • page length in lines or inches

Reliability:


Ribbon life: 5 million characters at 48 dots / characterTotal Print Volume: 40 million lines (not including printhead)Print head life: 400 million charactersMTBF: 25000 POH (25% duty cycle)
