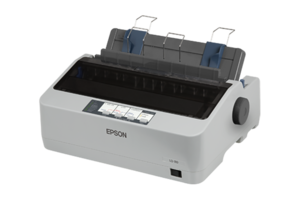

Epson LQ-310
Epson LQ-310

24-Pin Narrow Carriage Impact Printer

Your fast and affordable printing solution

    • Narrow carriage 24-pin SIDM
      High 416 CPS print speed at 12CPI / 347 CPS print speed at 10CPI
      10,000 power on hour MTBF
      USB, Serial and Parallel ports
  • Model: C11CC25311
Where to Buy
Buy Online
Support
WHY THE EPSON LQ-310?
Building on its reputation as the world’s top dot matrix printer maker, Epson has introduced the Epson LQ-310 as the next-generation narrow carriage, 24-pin model that replaces the legendary LQ-300, featuring vastly improved speed and reliability.
Extreme Speed
The Epson LQ-310 features a 128KB input data buffer memory that is double that of its predecessor. This enables it to achieve high printing speeds of up to 416 characters per second at 12 CPI – or almost 40% faster than the model it replaces.
Improving on Legendary Reliability
The Epson LQ-310 also has an improved reliability rating that is an astonishing 67% higher than its predecessor that was already renowned for its dependability. The LQ-310 is rated for a mean time before failure (MTBF) of 10,000 POH (power on hours) compared to the older model’s 6,000 POH.
High Impact for Multiple Carbon Copies
Achieve optimum efficiency with the LQ-310’s ability to create up to a 4-part form printout (1 original + 3 copies).
Flexible Connectivity
With built-in USB, Serial and Parallel Interfa

General:

Operating Systems: Windows 2000 / Me /XP / Vista / 7 / 8 / 8.1 / 10
Sound Level: 128KBCase Color: 1 original + 3 copiesDimensions: ESC/P2 and IBM PPDS emulation

Reliability:

Print head life: 400 million strokesMTBF: Approx. 10000 POH

Print Characteristics:

Standard: Italic table
PC437
PC850
PC860
PC861
PC863
PC865
Abicomp
BRASCII
Roman 8
ISO Latin 1
PC 858
ISO 8859-15
Barcodes: EAN-13
EAN-8
Interleaved 2 of 5
UPC-A
UPC-E
Code 39
Code 128
Postnet
Bitmap Fonts: Epson Draft
Epson Roman
Epson Sans Serif
Epson Courier
Epson Prestige
Epson Script
Epson OCR-B
Epson Orator
Epson Orator-S
Epson Script C
Scalable Fontss: Epson Roman
Epson San Serif
Epson Roman T & Epson San Serif H

Electrical Specifications:

Operating: 22WSleep: 1.0WPower Off: 0WRated Voltage: AC 220 - 240VRated Frequency: 50 - 60 Hz

Consumables:

Ribbon Cartridge Black: 2.5 million characters - S015639

Printing Technology:

Print Method: Impact dot matrixNumber of Pins: 24

Dimensions and Weight:

Dimensions (W x D x H): 362 × 275 × 154 mmWeight: 4.1kg

Paper Media:

Envelopes: No 6. Width: 165 mm (6.5")
Length: 92 mm (3.6")
Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205") (Total)
No 8. Width: 241 mm (9.5")
Length: 105 mm (4.1")
Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205")

Paper Path:

Manual Insertion: Rear in
Top outPush Tractor: Rear in
Top out

Options:

Options: Ribbon Cartridge - (Black) S015639
